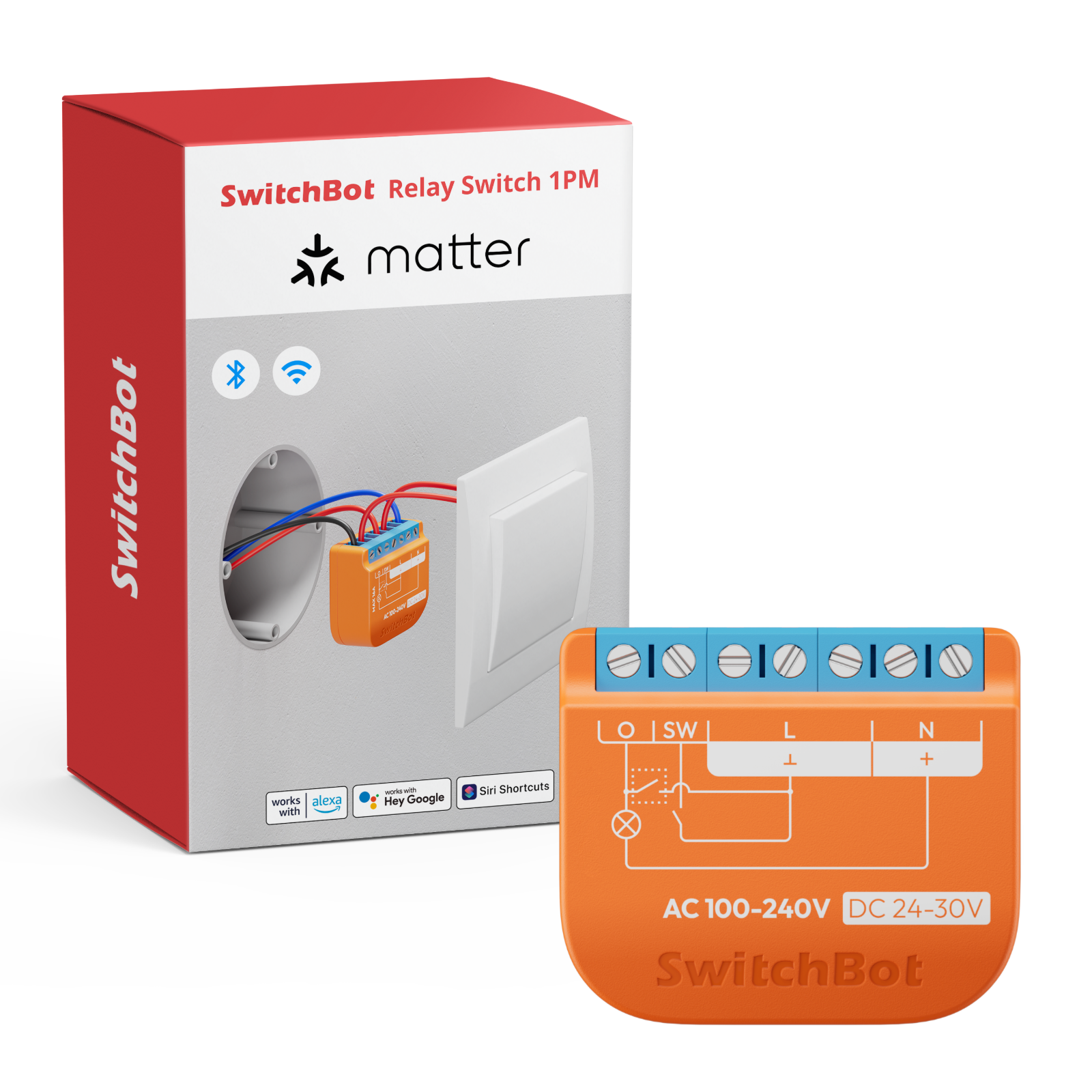

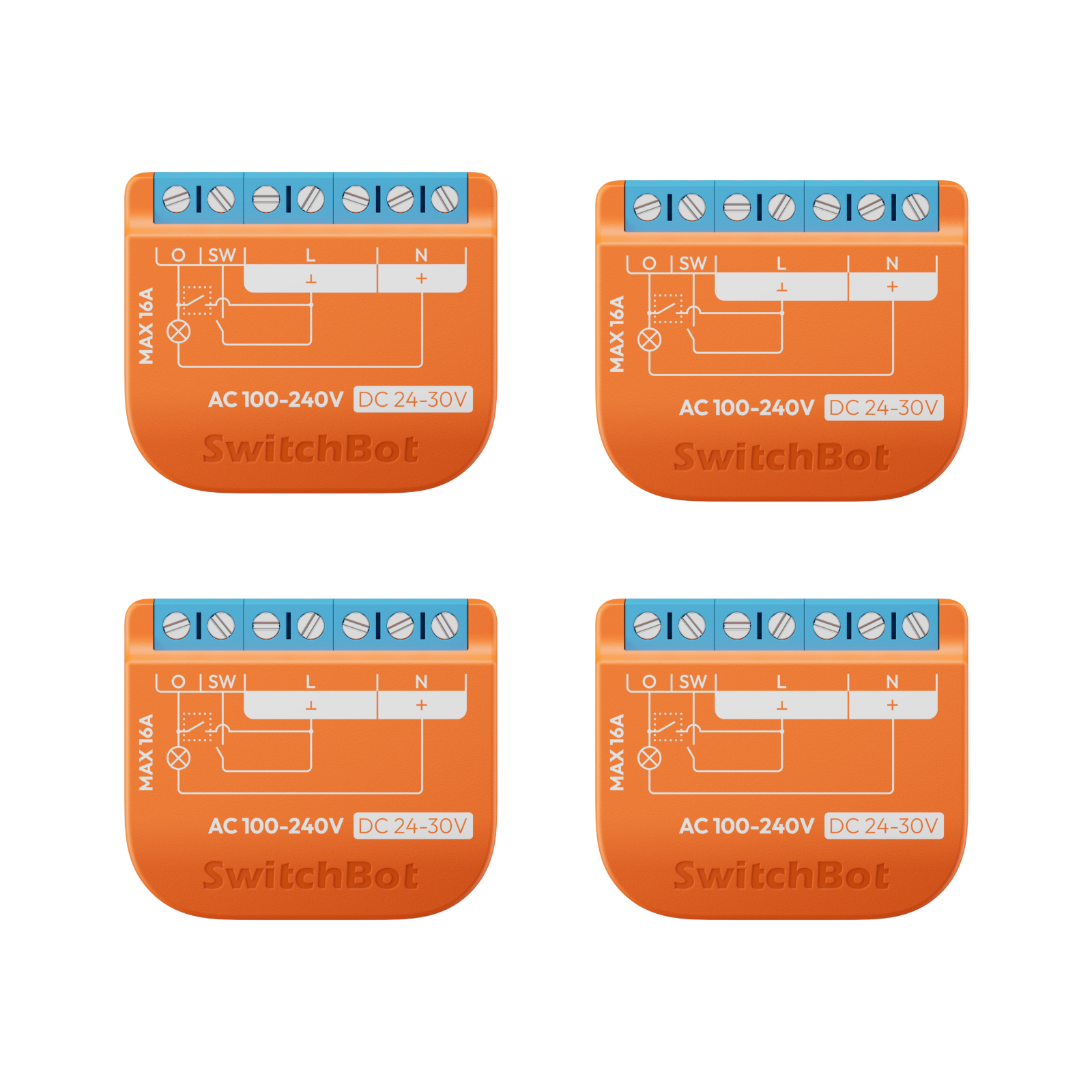

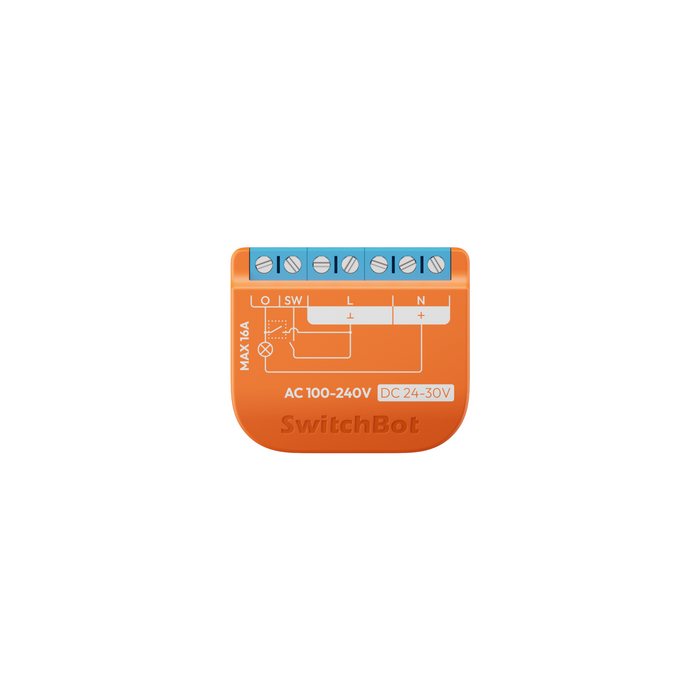

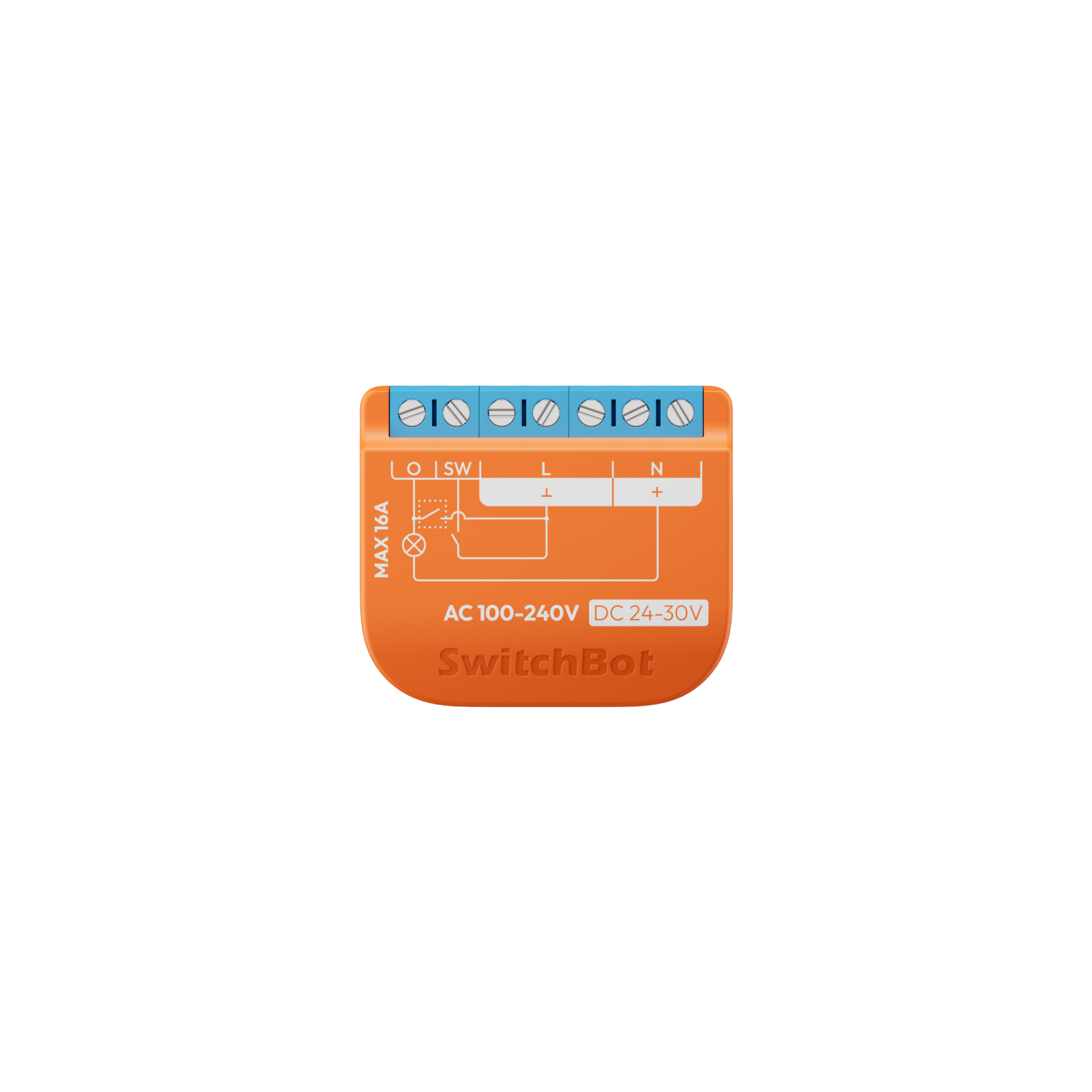

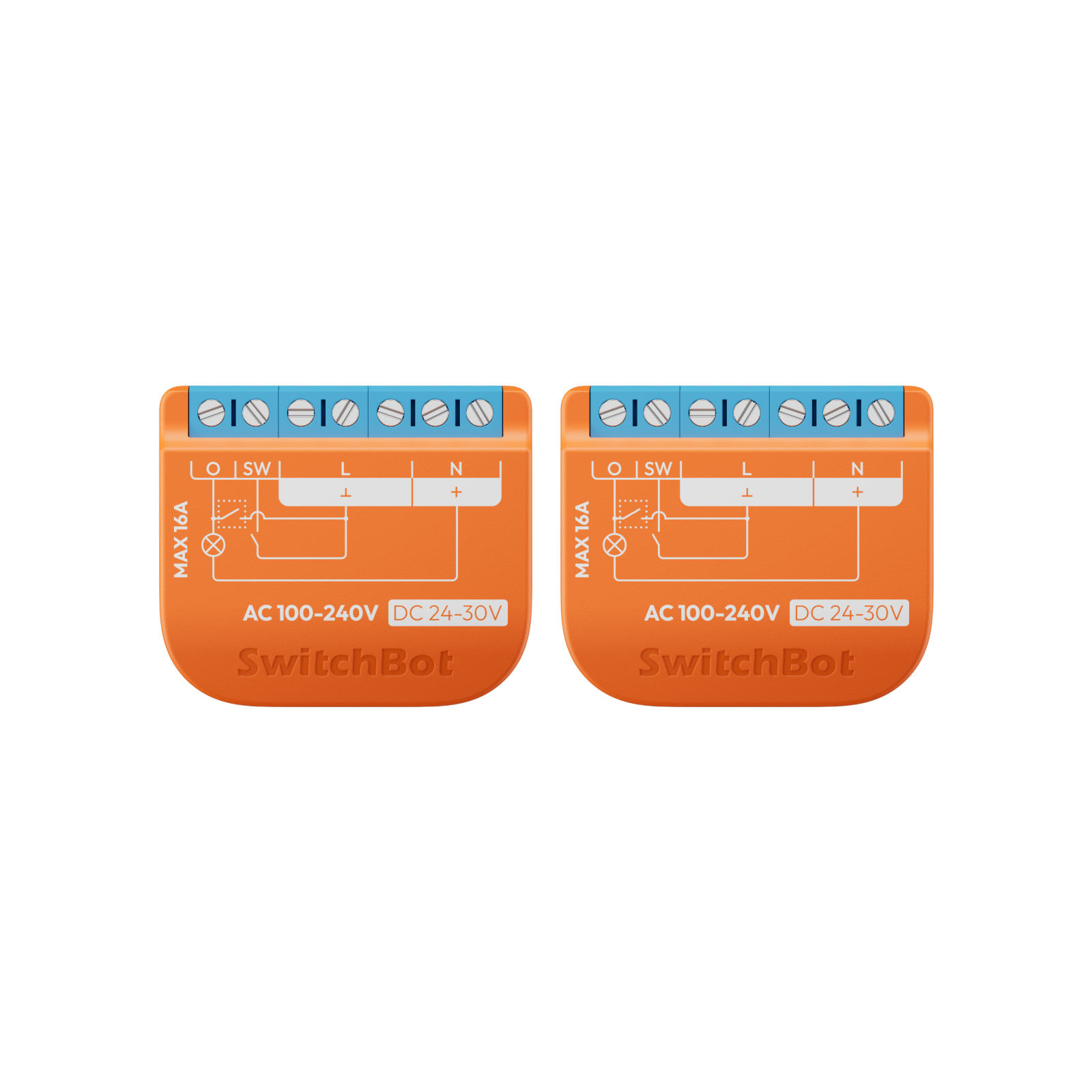

Name: SwitchBot Relay Switch 1PM
Brand: SwitchBot EU
SKU: 810150542219
Price: 16.99 USD
Availability: InStock

[[computedUnitPrice]]

[[computedUnitComparePrice]]

Selected: [[computedMyProdAddCartSelectInfo]]

[[optionItem.name]]

[[chooseItem]]

Quantity

[[addToCardQuantity]]

[[computedLastprice]]

[[computedAddCartReciveDateStr]]

Add to cart

Quick Intro

Relay Switch 1PM_EN_Amazon Images_1600x2000_01@1x (1).png__PID:3c090ab3-f00b-4cb5-9e9e-8d48ea9e5e5d

Relay Switch 1PM_EN_Amazon Images_1600x2000_02@0.5x.png__PID:f7f6fce9-2824-4d71-b806-3aba5474be7e

Relay Switch 1PM_EN_Amazon Images_1600x2000_03@1x.png__PID:64aa1cc8-ebce-4d38-a1cc-1d1fa0d035af

Relay Switch 1PM_EN_Amazon Images_1600x2000_04@0.5x (1).png__PID:18eb1405-cfdd-4669-b880-a58cd68096cf

Relay Switch 1PM_EN_Amazon Images_1600x2000_05@1x.png__PID:1364aa1c-c8eb-4e4d-b861-cc1d1fa0d035

Relay Switch 1PM_EN_Amazon Images_1600x2000_07_inch@1x.png__PID:6bbf1364-aa1c-48eb-8e4d-3861cc1d1fa0

Relay Switch 1PM_EN_Amazon Images_1600x2000_08@0.5x.png__PID:1cc8ebce-4d38-41cc-9d1f-a0d035af7bed

Relay Switch 1PM_EN_Amazon EBC_1464x600_01_PC@3x.png__PID:1b859cac-109d-43b5-93de-505b5b10b574

Relay Switch 1PM_EN_Amazon EBC_1464x600_02-1_PC@3x.png__PID:c76539f7-69a2-4eaf-8dd4-1e66ec413674

Relay Switch 1PM_EN_Amazon EBC_1464x600_02-2℃_PC@2x.png__PID:7b783ecf-3d59-4e92-aec4-931ce28a1d4e

Relay Switch 1PM_EN_Amazon EBC_1464x600_03-1℉_PC@2x.png__PID:e8ff6ae6-4b3f-4368-a96a-f8cd6b18b2bd

Relay Switch 1PM_EN_Amazon EBC_1464x600_03-2℉_PC@3x (1).png__PID:a96af8cd-6b18-42bd-9b58-76a80d3f88c8

Relay Switch 1PM_EN_Amazon EBC_1464x600_03-3_PC@2x.png__PID:e911c6a7-2fb4-4118-9561-67279784b423

Relay Switch 1PM_EN_Amazon EBC_1464x600_03-4℉_PC@3x (1).png__PID:db5876a8-0d3f-48c8-8309-5bf1149c639a

Relay Switch 1PM_EN_Amazon EBC_1464x600_04-1_PC@2x.png__PID:22d67b7f-7e23-4745-94b3-e1a812932508

Relay Switch 1PM_EN_Amazon EBC_1464x600_04-2_PC@2x.png__PID:6427c3ee-c7f5-44f8-a7d4-e288626400da

Relay Switch 1PM_EN_Amazon EBC_1464x600_04-3_PC@2x.png__PID:949eff73-854a-4e5a-a350-1d71f5455014

Relay Switch 1PM_EN_Amazon EBC_1464x600_05-1_PC@2x.png__PID:309e3431-1e84-4304-accc-9e9291a82a97

Relay Switch 1PM_EN_Amazon EBC_1464x600_05-2_PC@2x.png__PID:1023f907-cfe7-4bcd-a053-4fbab87c851f

Relay Switch 1PM_EN_Amazon EBC_1464x600_05-3_PC@2x.png__PID:d0cff048-270f-4b1e-b17e-943ccfc1422a

Relay Switch 1PM_EN_Amazon EBC_600x450_01_M@3x.png__PID:8897fff7-588b-4eec-a382-2c8f54355ec5

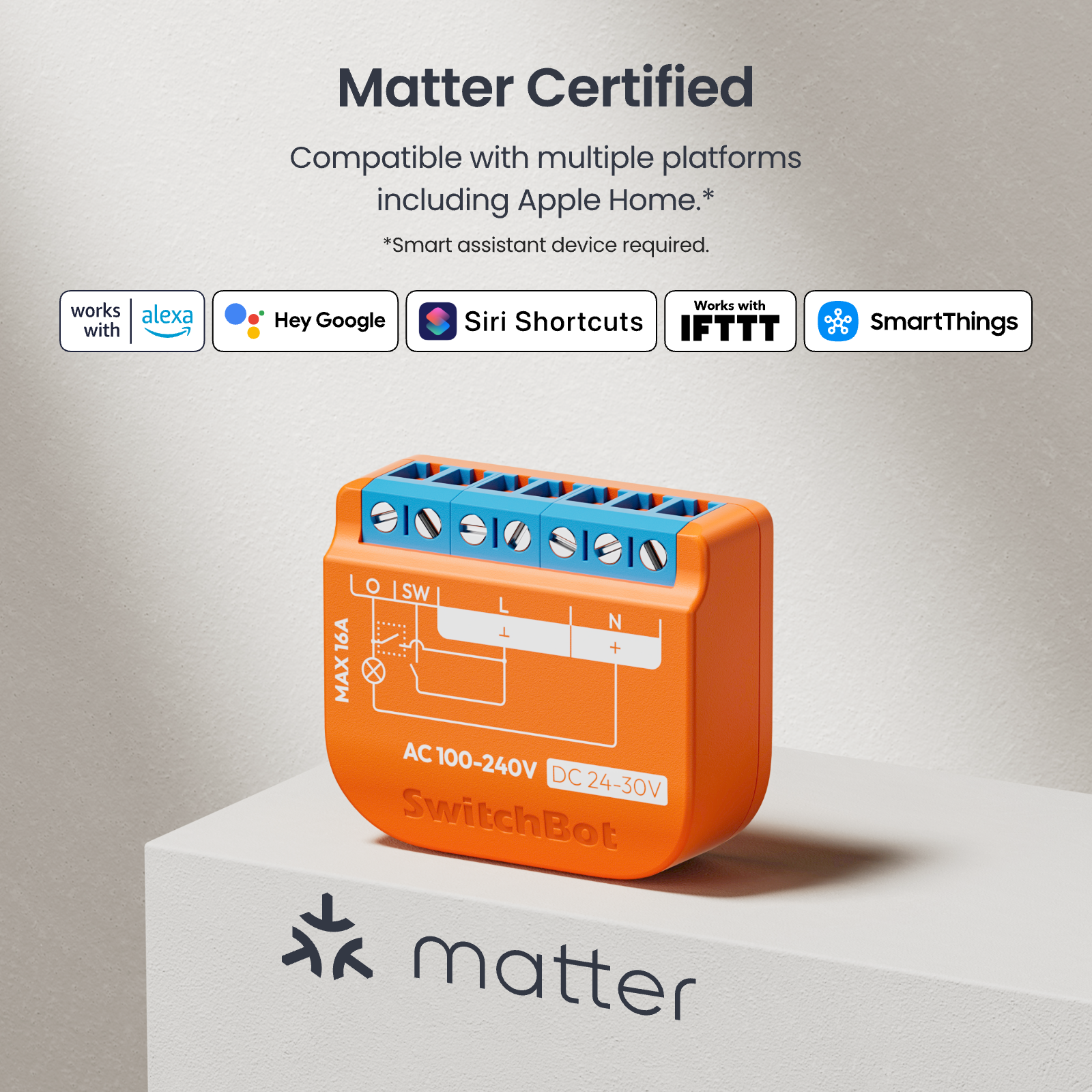

Matter Compatible

Matter devices can be consolidated and used on multiple platforms, such as Apple Home, Alexa, Google Home, and SmartThings.*

*Smart assistant device required.

Relay Switch 1PM_EN_Amazon EBC_600x450_02-1_M@3x.png__PID:d442ca5e-42de-4923-8dbe-04c5a11083a3

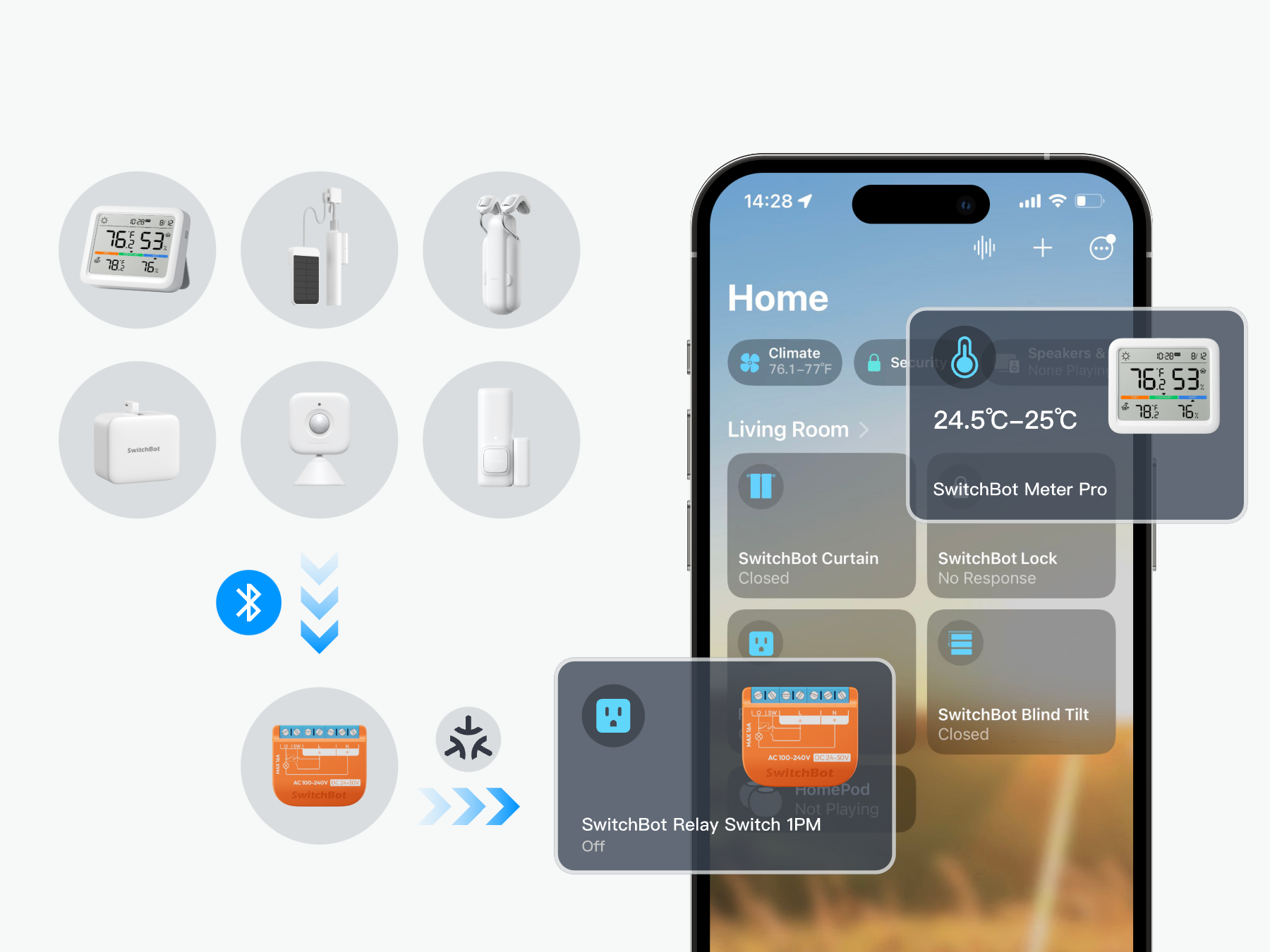

Integrate devices into HomeKit using Matter.

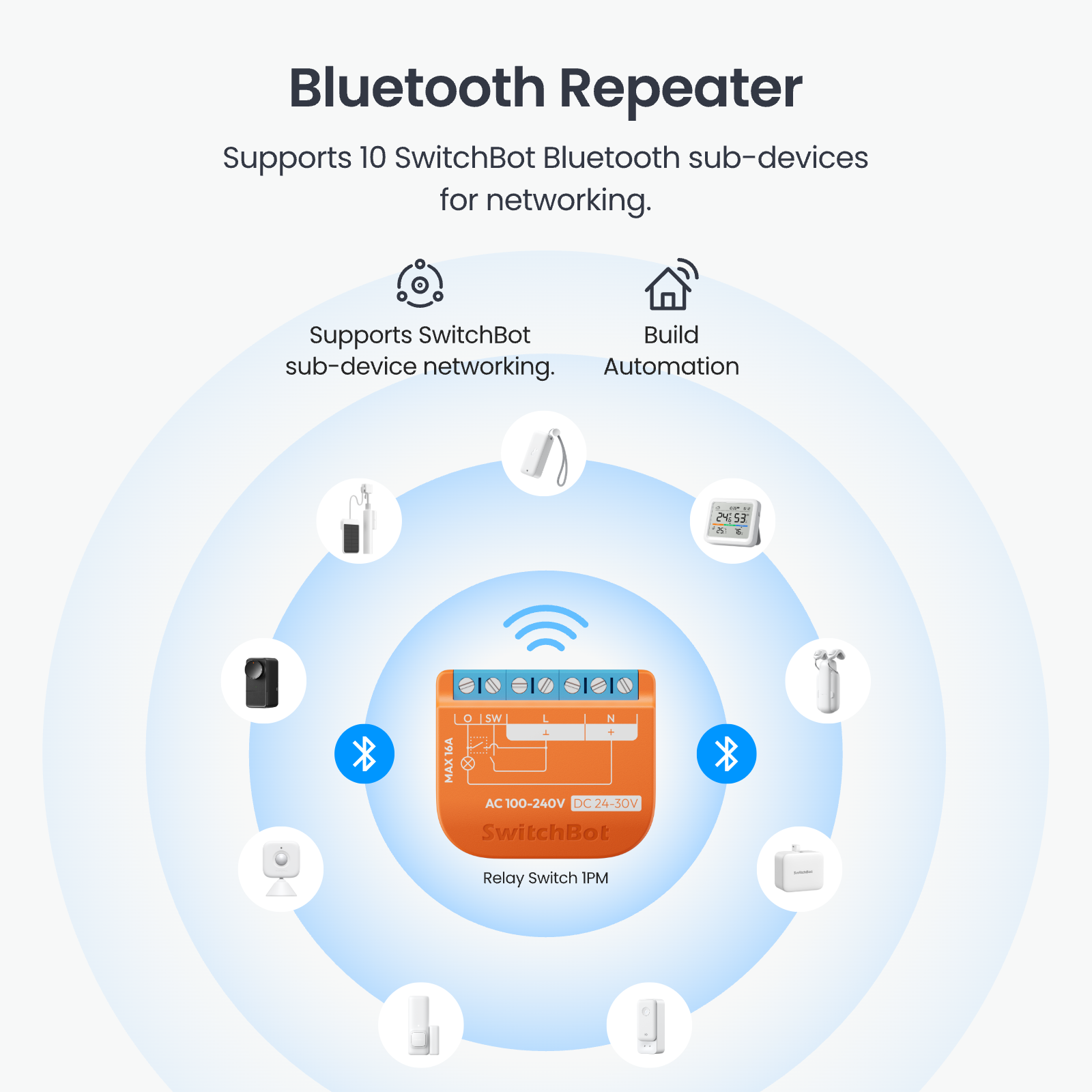

When connected to SwitchBot Relay Switch 1PM, two SwitchBot Bluetooth devices can support Matter and be controlled via Apple Home.

Relay Switch 1PM_EN_Amazon EBC_600x450_02-2℉ _M@3x (1).png__PID:96cf0c53-d7dc-434e-b585-b87e8ab77b4b

Relay Switch 1PM_EN_Amazon EBC_600x450_03-1℉_M@2x.png__PID:639abf0f-52d0-43a5-b073-42e1bd2dc8d3

Relay Switch 1PM_EN_Amazon EBC_600x450_03-2℃_M@3x.png__PID:c9793533-ef88-47f9-8321-29babd49a2dd

Relay Switch 1PM_EN_Amazon EBC_600x450_03-3_M@3x (1).png__PID:3533ef88-f7f9-4321-a9ba-bd49a2dd4be6

Relay Switch 1PM_EN_Amazon EBC_600x450_03-4℉_M@3x.png__PID:bf0f52d0-03a5-4073-82e1-bd2dc8d3a78c

Voice Control.

Operate devices hands-free with Alexa,
Siri, or Google Assistant.

Relay Switch 1PM_EN_Amazon EBC_600x450_04-1_M@1x.png__PID:cbbf8a7c-b422-4acf-a2d3-daca454af42a

Remote Control.

Control devices anywhere via Wi-Fi;
Bluetooth ensures local control even offline.

Relay Switch 1PM_EN_Amazon EBC_600x450_04-2_M@2x.png__PID:6a3a917c-baa2-4f81-bc84-5b7790e5914b

Custom Schedules.

Set schedules to turn off the lights and
save energy at night.

Relay Switch 1PM_EN_Amazon EBC_600x450_04-3_M@2x.png__PID:917cbaa2-af81-4c84-9b77-90e5914bb847

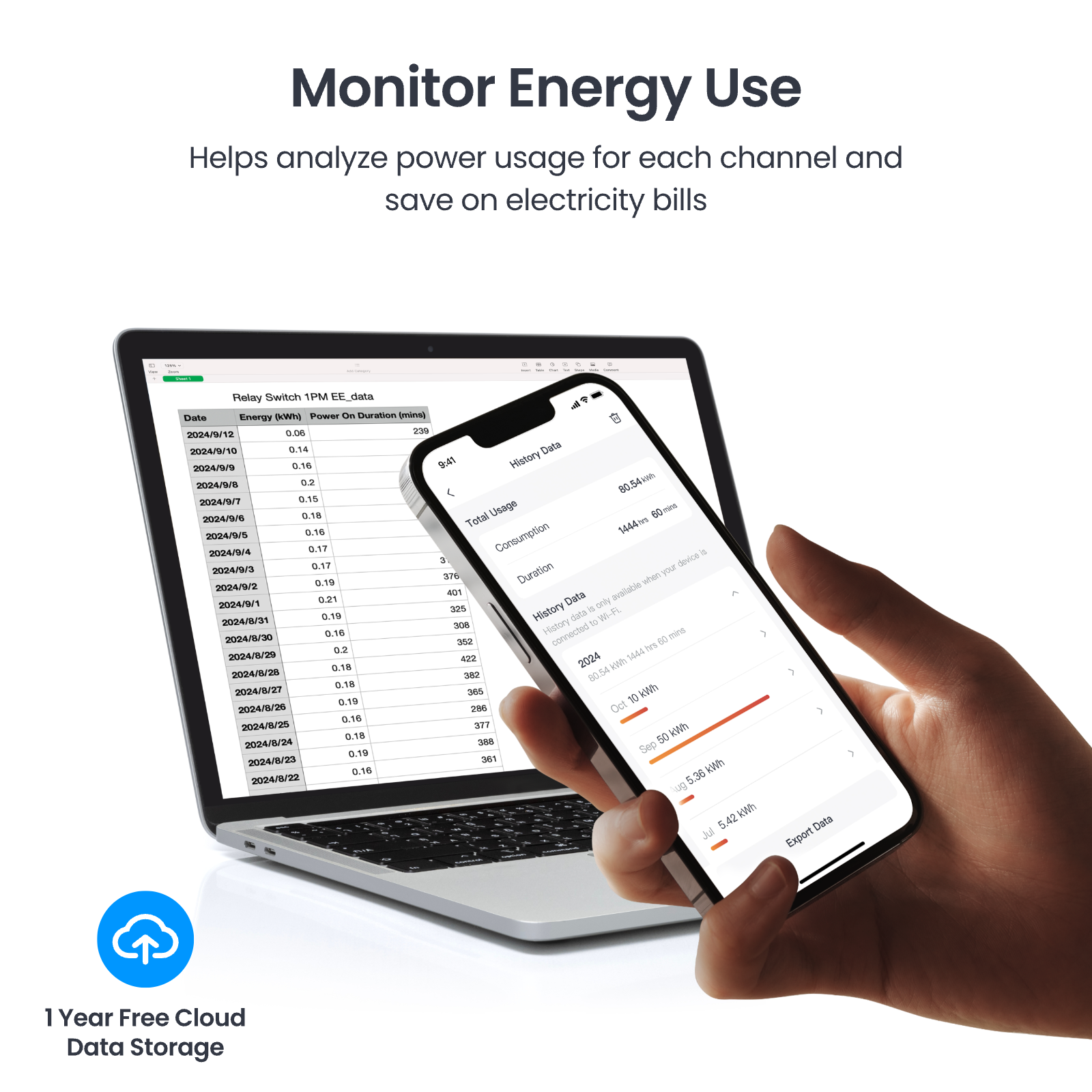

Power Monitoring.

Generate energy usage charts with export options to analyze and manage energy consumption.

Relay Switch 1PM_EN_Amazon EBC_600x450_05-1_M@3x (1).png__PID:c90494d8-6341-4038-864b-d99e8caf56a4

Safe & Reliable Design.

Automatically cuts off power in case of an emergency to ensure home safety.

Relay Switch 1PM_EN_Amazon EBC_600x450_05-2_M@3x (2).png__PID:94d86341-b038-464b-999e-8caf56a4df57

Ultra-Fast ESP32 Chip.

High-speed chip for efficient communication and processing, ensuring stable control.

Relay Switch 1PM_EN_Amazon EBC_600x450_05-3_M@3x.png__PID:6341b038-464b-499e-8caf-56a4df571e62

Specs

Product Info

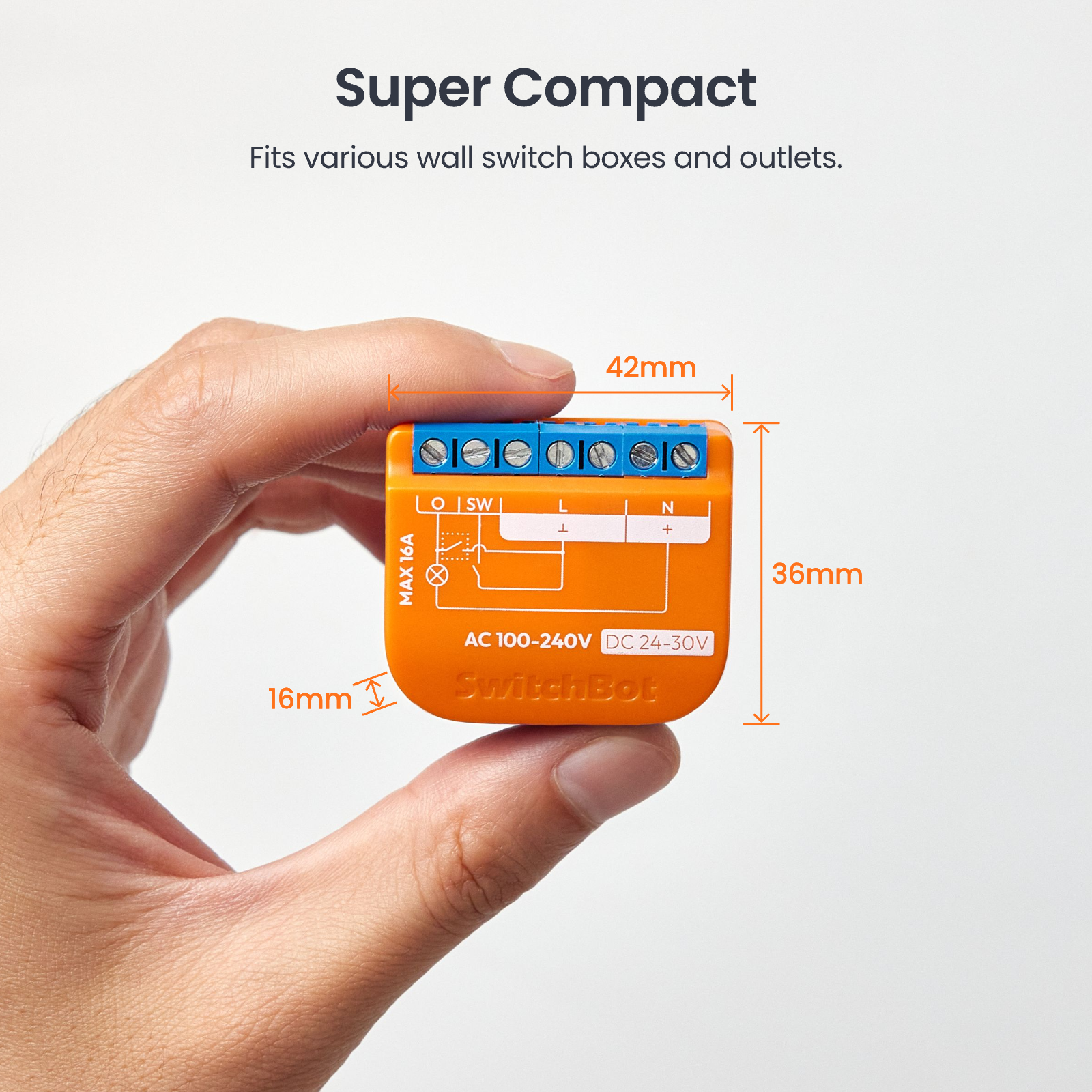

Dimensions (mm)	42 x 36 x 16±0.5 mm (1.6 x 1.4 x 0.6±0.02 in.)
Product Weight	Weight: 27 g (0.9 oz.)
Materials	PC

Parameter Information

Power Supply	AC Input: 100-240V 50/60Hz DC Input: 24V-30V
Output Current	Max AC Output Current: 16 A Max DC Output Current: 10 A
Product Lifespan	5 years
Connection Method	Wi-Fi+BLE
Installation Method	Embedded
Bluetooth Range	Indoor maximum range up to 10 meters / 33 feet, outdoor maximum range up to 30 meters / 100 feet (depending on local conditions)
Wi-Fi Range	Indoor maximum range up to 30 meters / 100 feet, outdoor maximum range up to 50 meters / 160 feet (depending on local conditions)
Certification Requirements	EU: CE, ROHS
Packing List	1 * Product, 1 * Manual, 1 * Warranty Card

Main Functions

Button Function	Controls on/off of the output: controls the turning on and off of lights, sockets, etc
Power Measurement	- Displays daily electricity consumption, total duration in the 'on' state, power, current, voltage, and total power from yesterday. - Shows total electricity consumption and usage duration. - Displays monthly electricity consumption with a data storage limit of 1 year.
Overload Protection	Automatically disconnects output in case of overload
Overtemperature Protection	Disconnects output immediately when exceeding 100°C
Switch Mode	Compatible with different switch types: 1. Toggle Switch: A switch with distinct 'on' and 'off' positions, ideal for traditional light switches. 2. Momentary Switch: A spring-loaded switch that momentarily changes the relay state when pressed, commonly used for doorbells and access control systems. 3. Detached Switch: The physical wall switch does not affect the device, ideal for smart lights that need constant power, similar to ceiling light controls. 4. Edge Switch: Each press of the button toggles the state, independent of the previous position, ensuring the state changes with every press.
Roller Blind Mode	Not supported
Garage Door Mode	Not supported
Matter	You can enter the Matter settings from the Relay Switch settings page to put the device into Matter setup mode and add it to the Home app. The Relay Switch itself is displayed as a switch in the Home app and can add Matter secondary devices.

FAQ

How to Install SwitchBot Relay 1PM (Video Guide)？

Is there overload protection in the SwitchBot Relay Switch 1PM?

SwitchBot Relay Switch 1PM is equipped with an overload protection feature that automatically disconnects the input if the current exceeds 16A. This protection helps prevent overheating or potential damage by cutting power when high current levels are detected. If overload protection is triggered, you can reset the device by turning off the power and restarting it, which will clear the protection state.

What is the power consumption of the SwitchBot Relay Switch?

When SwitchBot Relay Switch is in the on state, its power consumption is less than 1.2W.

Can SwitchBot Relay Switch Monitor Solar Panel Power Levels?

The SwitchBot Relay Switch 1PM includes functionality for monitoring solar panel power levels, making it an ideal choice if you need to track energy usage.

Can SwitchBot Relay Switch Measure DC Loads?

We regret to infrom you that SwitchBot Relay Switch does not support measuring DC loads.

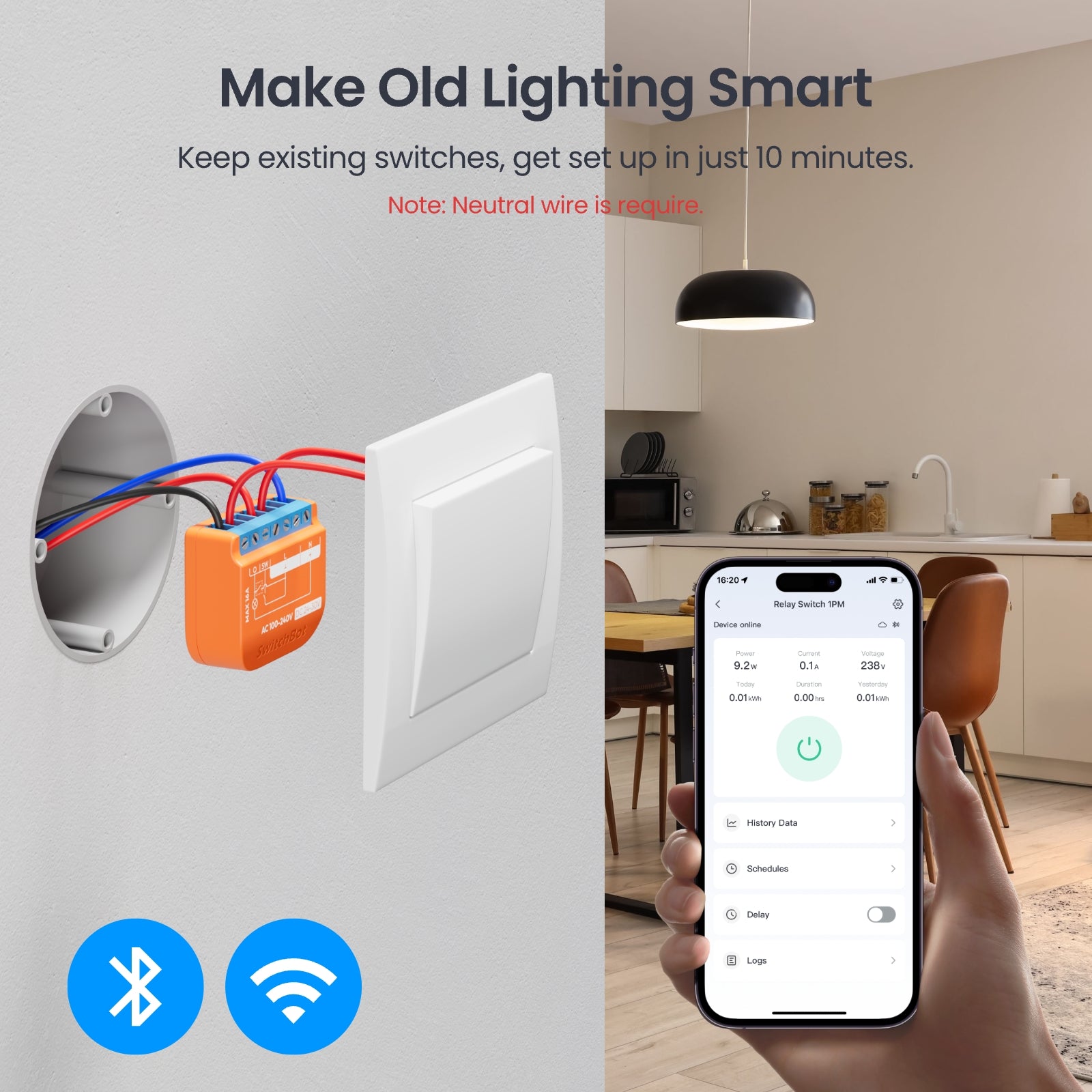

Does SwitchBot Relay Switch Require a Neutral Wire?

Yes, SwitchBot Relay Switch does require a neutral wire for proper installation and operation.
